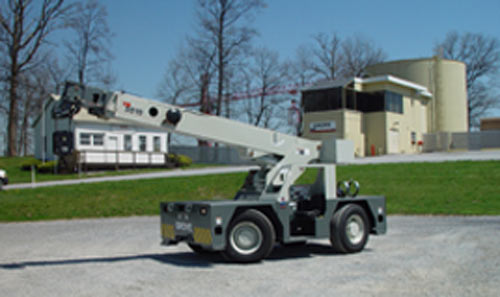

Carrydeck Mobile Crane | YB5515

Back to Carrydeck

HOME

PRODUCTS

YB5515

KEY SPECIFICATIONS

TYPE	VALUE
Capacity	13,6 t
Main Boom Length	5,6 m - 12,5 m
Max Tip Height	21.3 m
Vehicle Gross Weight	12376.3 kg

TYPE

VALUE

Capacity

13,6 t

Main Boom Length

5,6 m - 12,5 m

Max Tip Height

21.3 m

Vehicle Gross Weight

12376.3 kg

	FEATURE	DESCRIPTION
	Boom	5,6 m - 12,5 m (18 ft 6 in - 41 ft 0 in) three-section full power boom. Maximum tip height: 14,1 m (46 ft 3 in)
	*Optional boom	Manual fourth main boom fly section Maximum tip height: 17,0 m (56 ft 3 in)
	*Boom extension	4,6 m (15 ft) offsettable swingaway extension
	Boom nose	Two sheave non-pivoting boom nose
	Boom elevation	Single double acting hydraulic cylinder with integral holding valve. Elevation: 0° to 69° for the YB5515
	Anti-two block device	Standard anti-two block device, when activated, provides an audible warning to the crane operator and disengages all crane functions whose movement can cause two-blocking.
	Load indicator (wireless LSI)	A simple, effective, and easy to use load moment indicating system used in conjunction with a wireless anti-two block system to assist the operator in efficient operation of the unit within the limits of the load chart. The display panel displays the hook load, length and angle of the boom, and load radius in Dot Matrix numerical values and provides a load utilization colored bar graph. If non-permitted conditions are approached the L.M.I. will warn the operator with an audible alarm and a warning light and will lock out those functions that may aggravate the condition. Standard limit settings can be programmed for boom Angle, load radius, and boom tip height.
	*Load moment indicator(hardwired LMI)	"Graphics Display" of boom angle, boom length, load radius, and capacity. Operator input to set the limit parameters based on the load chart. Displays color coded light bar and audible alarm with function cut-out if load exceeds the load chart parameters.
	Swing	Ball bearing swing circle with 360° continuous rotation. Hydraulic driven worm gear and pinion. Maximum speed: YB5515: 2.1 rpm
	Hydraulic system	Four section gear pump providing a system pressure of 241,3 bars (3500 psi) Combined flow: 333,1 Lpm (88.0 gpm) YB5515: Six-section valve bank mounted in dash with direct mechanical linkage for low effort lever control. Return line filter with full flow by-pass protection and service indicator. 151,4 L (40 gal) hydraulic reservoir with sight level gauge and steel side plating to guard against side impact damage.
	Hoist specifications	Piston motor drive with spring applied / hyd. released brake. Equal speed power up and down. Drum diameter: 0,25m (9.75 in) Maximum hoist single line pull: 5443 kg (12,000 lb) Maximum hoist single line speed: 38,4 m/min (126 fpm) Maximum permissible single line pull: 3402 kg (7500 lb) (12,7 mm [1/2 in]) Rope length: (three-section boom) 73,0 m (240 ft) (four-section boom) 88,4 m (290 ft)
	Frame	High strength alloy steel constructed with integral outrigger housings; front and rear tie-down lugs. 75 ft2 carrydeck size with 9072 kg (20,000 lb) carrying capacity. Deck coated with anti-skid treatment.
	Outriggers	YB5515: Front and rear oblique type beams at all four corners with integral holding valves. Outrigger pads form an integral part of the beam. Outrigger pad size 222 mm x 254 mm (8.75 in x 10 in). Outrigger monitoring system (required for North America and Canada). Maximum pad load: 162 p.s.i.
	Outrigger controls	Lever controls located on dash panel and operate the beams in pairs from side to side. Level bubble located inside operators compartment. *Independent outrigger controls available as an option.
	Dual Fuel engine (2007 EPA)	G.M. 4,3 L V-6 EFI dual fuel (gasoline / L.P.) rated at 69,3 kW (93 bhp) at 2500 rpm.
	Operators control station	Frame mounted, open air style control station with cab shell includes all crane functions, driving controls, and overhead safety glass. Other standard equipment include a durable weather resistant seat with seat belt, hourmeter, sight level bubble, and fire extinguisher. The dash panel includes engine oil pressure gauge, engine water temperature gauge, fuel gauge, transmission low oil and high temperature warning lights, low battery warning light, and brake system low pressure warning light. The LSI (load indicator) receiver is mounted to the top of the dash.
	*Operators control station enclosed	Includes the standard cab shell with the addition of front, right, and rear glass, a split (two-piece) hinged door with sliding glass. Front windshield wiper, heater and defroster fan are included.
	Fuel tank capacity	151,4 L (40 gal) all steel construction with steel side plate to guard against side impact.
	Electrical system	One 12V maintenance free battery, 820CCA @ 0°. 63 amp alternator.
	Drive	4 x 2 - Front axle drive with planetary hubs and limited slip differential.
	Steer	Two-wheel, four-wheel, and crab steer Outside turning radius: Two wheel steer: 6,55 m (21 ft 6 in) Four wheel steer: 3,76 m (12 ft 4 in)
	Transmission	I.T.L. synchromesh four-speeds forward and reverse.
	Tires	385/65R 22.5 radial traction tread pneumatic
	Brakes	Hydraulic actuated internal wet-disc service brakes acting on all four wheels. A dash mounted toggle switch activates the dry disc parking brake on the transmission output yoke with a dash warning light.
	Suspension	Front: Rigid mounted to frame. Rear: Provides 1.5° oscillation for use on semi-rough terrain. Axle lock-out must be engaged (locked) whenever picking on rubber or traveling in the crab steer mode. A warning light indicates when the axle lock-outs are engaged.
	Lights	Recessed mounted, includes head, tail, rear work, stop, and turn signals.
	Maximum speed	23,3 km/h (14.5 mph)
	Gradeability (theoretical)	73%....no load 41%.... 9072 kg (20,000 lb) load
	Gross vehicle weight (G.V.W.)	12 332 kg (27,186 lb) three-section boom 12 584 kg (27,743 lb) four-section boom *All weights with enclosed cab
	Miscellaneous standard equipment	Two sheave, "Quick Reeve" style hookblock; 13,6 t (15.0 USt). Back-up alarm Lifting and tie down lugs Outrigger motion alarm

FEATURE

DESCRIPTION

Boom

5,6 m - 12,5 m (18 ft 6 in - 41 ft 0 in) three-section full power boom. Maximum tip height: 14,1 m (46 ft 3 in)

*Optional boom

Manual fourth main boom fly section Maximum tip height: 17,0 m (56 ft 3 in)

*Boom extension

4,6 m (15 ft) offsettable swingaway extension

Boom nose

Two sheave non-pivoting boom nose

Boom elevation

Single double acting hydraulic cylinder with integral holding valve. Elevation: 0° to 69° for the YB5515

Anti-two block device

Standard anti-two block device, when activated, provides an audible warning to the crane operator and disengages all crane functions whose movement can cause two-blocking.

Load indicator (wireless LSI)

A simple, effective, and easy to use load moment indicating system used in conjunction with a wireless anti-two block system to assist the operator in efficient operation of the unit within the limits of the load chart. The display panel displays the hook load, length and angle of the boom, and load radius in Dot Matrix numerical values and provides a load utilization colored bar graph. If non-permitted conditions are approached the L.M.I. will warn the operator with an audible alarm and a warning light and will lock out those functions that may aggravate the condition. Standard limit settings can be programmed for boom Angle, load radius, and boom tip height.

*Load moment indicator(hardwired LMI)

"Graphics Display" of boom angle, boom length, load radius, and capacity. Operator input to set the limit parameters based on the load chart. Displays color coded light bar and audible alarm with function cut-out if load exceeds the load chart parameters.

Swing

Ball bearing swing circle with 360° continuous rotation. Hydraulic driven worm gear and pinion. Maximum speed: YB5515: 2.1 rpm

Hydraulic system

Four section gear pump providing a system pressure of 241,3 bars (3500 psi) Combined flow: 333,1 Lpm (88.0 gpm) YB5515: Six-section valve bank mounted in dash with direct mechanical linkage for low effort lever control. Return line filter with full flow by-pass protection and service indicator. 151,4 L (40 gal) hydraulic reservoir with sight level gauge and steel side plating to guard against side impact damage.

Hoist specifications

Piston motor drive with spring applied / hyd. released brake. Equal speed power up and down. Drum diameter: 0,25m (9.75 in) Maximum hoist single line pull: 5443 kg (12,000 lb) Maximum hoist single line speed: 38,4 m/min (126 fpm) Maximum permissible single line pull: 3402 kg (7500 lb) (12,7 mm [1/2 in]) Rope length: (three-section boom) 73,0 m (240 ft) (four-section boom) 88,4 m (290 ft)

Frame

High strength alloy steel constructed with integral outrigger housings; front and rear tie-down lugs. 75 ft2 carrydeck size with 9072 kg (20,000 lb) carrying capacity. Deck coated with anti-skid treatment.

Outriggers

YB5515: Front and rear oblique type beams at all four corners with integral holding valves. Outrigger pads form an integral part of the beam. Outrigger pad size 222 mm x 254 mm (8.75 in x 10 in). Outrigger monitoring system (required for North America and Canada). Maximum pad load: 162 p.s.i.

Outrigger controls

Lever controls located on dash panel and operate the beams in pairs from side to side. Level bubble located inside operators compartment. *Independent outrigger controls available as an option.

Dual Fuel engine (2007 EPA)

G.M. 4,3 L V-6 EFI dual fuel (gasoline / L.P.) rated at 69,3 kW (93 bhp) at 2500 rpm.

Operators control station

Frame mounted, open air style control station with cab shell includes all crane functions, driving controls, and overhead safety glass. Other standard equipment include a durable weather resistant seat with seat belt, hourmeter, sight level bubble, and fire extinguisher. The dash panel includes engine oil pressure gauge, engine water temperature gauge, fuel gauge, transmission low oil and high temperature warning lights, low battery warning light, and brake system low pressure warning light. The LSI (load indicator) receiver is mounted to the top of the dash.

*Operators control station enclosed

Includes the standard cab shell with the addition of front, right, and rear glass, a split (two-piece) hinged door with sliding glass. Front windshield wiper, heater and defroster fan are included.

Fuel tank capacity

151,4 L (40 gal) all steel construction with steel side plate to guard against side impact.

Electrical system

One 12V maintenance free battery, 820CCA @ 0°. 63 amp alternator.

Drive

4 x 2 - Front axle drive with planetary hubs and limited slip differential.

Steer

Two-wheel, four-wheel, and crab steer Outside turning radius: Two wheel steer: 6,55 m (21 ft 6 in) Four wheel steer: 3,76 m (12 ft 4 in)

Transmission

I.T.L. synchromesh four-speeds forward and reverse.

Tires

385/65R 22.5 radial traction tread pneumatic

Brakes

Hydraulic actuated internal wet-disc service brakes acting on all four wheels. A dash mounted toggle switch activates the dry disc parking brake on the transmission output yoke with a dash warning light.

Suspension

Front: Rigid mounted to frame. Rear: Provides 1.5° oscillation for use on semi-rough terrain. Axle lock-out must be engaged (locked) whenever picking on rubber or traveling in the crab steer mode. A warning light indicates when the axle lock-outs are engaged.

Lights

Recessed mounted, includes head, tail, rear work, stop, and turn signals.

Maximum speed

23,3 km/h (14.5 mph)

Gradeability (theoretical)

73%....no load 41%.... 9072 kg (20,000 lb) load

Gross vehicle weight (G.V.W.)

12 332 kg (27,186 lb) three-section boom 12 584 kg (27,743 lb) four-section boom *All weights with enclosed cab

Miscellaneous standard equipment

Two sheave, "Quick Reeve" style hookblock; 13,6 t (15.0 USt). Back-up alarm Lifting and tie down lugs Outrigger motion alarm
