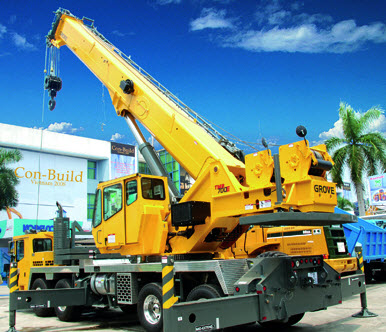

Truck Mounted Mobile Crane | TMS700E

Back to Truck Mounted

HOME

PRODUCTS

TMS700E

KEY SPECIFICATIONS

TYPE	VALUE
Capacity	50 t - 55 t
Main Boom Length	11 m - 33,5 m
Max Tip Height	64.6 m
Vehicle Gross Weight	36434.3 kg

TYPE

VALUE

Capacity

50 t - 55 t

Main Boom Length

11 m - 33,5 m

Max Tip Height

64.6 m

Vehicle Gross Weight

36434.3 kg

	FEATURE	DESCRIPTION
	Boom	11 m - 33,5 m (36 ft - 110 ft) four (4) section, full power sequenced synchronized boom.Maximum tip height: 35,9 m (118 ft).
	Folding lattice extension	10,1 m - 17,1 m (33 ft - 56 ft) folding lattice swingaway extension offsettable at 0°, 25° or 45°. Stows alongside base boom section.Maximum tip height: 52,6 m (172.5 ft).
	*Lattice extension	Two (2) 6,1 m (20 ft) lattice extensions used with the swingaway extension to increase the length to 23,2 m (76 ft) or 29,3 m (96 ft). Maximum tip height: 64,6 m (212 ft).
	Boom nose	Quick reeving type boom nose with 3 nylatron sheaves (TMS750E), (4 for TMS760E [ 55 t (60 USt) rating]) mounted on heavy duty tapered roller bearings with removable pin-type rope guards. Removable auxiliary boom nose with removable pin type rope guard.
	Boom elevation	One double acting hydraulic cylinder with integral holding valve provides elevation from -3° to 78°.
	Load moment and anti-two block system	Standard "Graphics Display" load moment and anti-two block system with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, boom length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition. The standard "Work Area Definition System" allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions.
	Cab	High visibility, all steel cab with acoustical lining and tinted safety glass throughout. Deluxe seat with armrest mounted hydraulic single axis controls. Dash panel incorporates gauges for all engine functions. Other standard features include: sliding side and rear windows, hot water heat, electric windshield wash/wipe, circulating air fan, sliding skylight with sunscreen and electric skylight wiper, fire extinguisher, cup holder, air conditioning
	Swing	Planetary swing with foot applied multi-disc wet brake. Spring applied, hydraulically released parking brake. Two position plunger type and 360° mechanical house locks operated from cab. Maximum speed: 2.0 rpm.
	Counterweight	4990 kg (11,000 lb) consisting of (2) 2495 kg ([2] 5500 lb) sections. *Optional "Heavy Lift" package consisting of (1) additional 2495 kg (5500 lb) section, for a total of 7484 kg (16,500 lb). Hydraulic installation/removal.
	Hydraulic system	Four main gear pumps with a combined capacity of 513 L/m (135.4 gpm). Individual pressure compensated valve banks. Maximum operating pressure: 27,6 Mpa (4000 psi). Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with beta rating of 5/12/16. 643 L (170 gal) reservoir. Remote mounted oil cooler with thermostatically controlled electric motor driven fan.
	Hoist main and auxiliary hoistsmodel HP30A-19G	Planetary reduction with integral automatic brake, electronic hoist drum rotation indicator, and hoist drum cable follower. Grooved drum. Single line pull: 1st layer: 8226 kg (18,134 lb) 3rd layer: 6994 kg (15,420 lb) 5th layer: 6084 kg (13,413 lb) Maximum single line speed: 162 m/min (531 fpm) Maximum permissible line pull: 7620 kg (16,800 lb) with standard 6 x 37 class rope 7620 kg (16,800 lb) with optional 35 x 7 class rope Rope diameter: 19 mm (.75 in) Rope length: 152 m (500 ft) Maximum rope stowage: 256 m (841 ft)
	Chassis	Triple box section, four-axle carrier, fabricated from high strength, low alloy steel with towing and tie-down lugs.
	Outrigger system	Four hydraulic telescoping, single stage, double box beam outriggers with inverted jack and integral holding valves. Quick release type steel outrigger floats 610 mm (24 in) diameter. Three position setting with fully extended, intermediate (50%) extended and fully retracted capacities. 5th front jack with self-storing pad and automatic first-retract. Includes Outrigger Monitoring System. Maximum outrigger pad load: 90,890 lb
	Outrigger controls	Located in the superstructure cab and both sides of chassis. Level indicator at each control station.
	Engine	Cummins QSM 11 six-cylinder, turbo-charged and after-cooled diesel engine. 10.8 L (660 in3 ), 300 kW (402 bhp) at 1800 rpm. Maximum torque 1898 Nm (1400 lb-ft) at 1400 rpm. Tier III "Off-Highway" EPA, CARB and EU Stage IIIA compliant. Equipped with engine compression brake, audio-visual engine distress system and ether cold start aid. Fuel Requirement: Maximum of 5000 ppm sulfur content.
	Fuel tank capacity	379 L (100 gal).
	Transmission	Roadranger 11 speeds forward, 3 reverse, manual.
	Drive	Drive 8 x 4 x 4.
	Steering	Front axles, single circuit, mechanical steering with hydraulic assist.
	Axles	Front: (2) beam-type steering axles, 2,1 m (83.3 in) track. Rear: (2) single reduction drive axles, 1,9 m (75.1 in) track. Inter-axle differential lock.
	Brakes	S-cam, dual system operating on all wheels. Spring applied air released parking brake acting on rear axles. Air dryer.
	Suspension	Front: Walking beam with air bags and shock absorbers. Rear: Walking beam with air bags and shock absorbers.
	Tires	Front: 445/65R 22.5, tubeless, mounted on aluminum disc wheels. Rear: 315/80R 22.5, tubeless, mounted on aluminum disc wheels, steel inner
	Lights	Full lighting package including turn indicators, head, tail, brake, and hazard warning lights.
	Cab	One man design, all steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe fabric covered, fully adjustable air ride seat. Complete driving controls and engine instrumentation including tilt telescope steering wheel, tachometer, speedometer, voltmeter, water temp., oil pressure, fuel level, air pressure gauge with A/V warning and engine high temp./low oil pressure A/V warning. Other standard items include hot water heater/defroster, electric windshield wash/wipe, fire extinguisher, seat belt, air conditioning, air horn and door lock.
	Electrical system	Three (3) 12V batteries. 12V lighting/starting. Battery disconnect standard equipment.
	Maximum speed	104 km/h (65 mph)
	Gradeability (theoretical)	70%
	Miscellaneous standard equipment	Aluminum fenders with rear storage compartments; dual rear view mirrors; electronic back-up alarm; pump disconnect; tire inflation kit; air cleaner restriction indicator; headache ball stowage; chrome package which includes aluminum wheels, hoist access platform, LMI event recorder and CraneSTAR asset management system.
	*Optional equipment	Auxiliary Lighting and Convenience Package - includes amber strobe for superstructure and carrier cabs, dual boom base mounted floodlights, and LMI light bar (in cab) Trailing Boom Package - includes trailer air and electrical disconnects, no spin differential and trailing boom kit (less dolly) Wind speed indicator Hook blocks Rear pintle hook Cross axle differential locks Winter front radiator cover Aluminum outrigger pads Tow cable LMI calibration for on rubber

FEATURE

DESCRIPTION

Boom

11 m - 33,5 m (36 ft - 110 ft) four (4) section, full power sequenced synchronized boom.Maximum tip height: 35,9 m (118 ft).

Folding lattice extension

10,1 m - 17,1 m (33 ft - 56 ft) folding lattice swingaway extension offsettable at 0°, 25° or 45°. Stows alongside base boom section.Maximum tip height: 52,6 m (172.5 ft).

*Lattice extension

Two (2) 6,1 m (20 ft) lattice extensions used with the swingaway extension to increase the length to 23,2 m (76 ft) or 29,3 m (96 ft). Maximum tip height: 64,6 m (212 ft).

Boom nose

Quick reeving type boom nose with 3 nylatron sheaves (TMS750E), (4 for TMS760E [ 55 t (60 USt) rating]) mounted on heavy duty tapered roller bearings with removable pin-type rope guards. Removable auxiliary boom nose with removable pin type rope guard.

Boom elevation

One double acting hydraulic cylinder with integral holding valve provides elevation from -3° to 78°.

Load moment and anti-two block system

Standard "Graphics Display" load moment and anti-two block system with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, boom length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition. The standard "Work Area Definition System" allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions.

Cab

High visibility, all steel cab with acoustical lining and tinted safety glass throughout. Deluxe seat with armrest mounted hydraulic single axis controls. Dash panel incorporates gauges for all engine functions. Other standard features include: sliding side and rear windows, hot water heat, electric windshield wash/wipe, circulating air fan, sliding skylight with sunscreen and electric skylight wiper, fire extinguisher, cup holder, air conditioning

Swing

Planetary swing with foot applied multi-disc wet brake. Spring applied, hydraulically released parking brake. Two position plunger type and 360° mechanical house locks operated from cab. Maximum speed: 2.0 rpm.

Counterweight

4990 kg (11,000 lb) consisting of (2) 2495 kg ([2] 5500 lb) sections. *Optional "Heavy Lift" package consisting of (1) additional 2495 kg (5500 lb) section, for a total of 7484 kg (16,500 lb). Hydraulic installation/removal.

Hydraulic system

Four main gear pumps with a combined capacity of 513 L/m (135.4 gpm). Individual pressure compensated valve banks. Maximum operating pressure: 27,6 Mpa (4000 psi). Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with beta rating of 5/12/16. 643 L (170 gal) reservoir. Remote mounted oil cooler with thermostatically controlled electric motor driven fan.

Hoist main and auxiliary hoistsmodel HP30A-19G

Planetary reduction with integral automatic brake, electronic hoist drum rotation indicator, and hoist drum cable follower. Grooved drum. Single line pull: 1st layer: 8226 kg (18,134 lb) 3rd layer: 6994 kg (15,420 lb) 5th layer: 6084 kg (13,413 lb) Maximum single line speed: 162 m/min (531 fpm) Maximum permissible line pull: 7620 kg (16,800 lb) with standard 6 x 37 class rope 7620 kg (16,800 lb) with optional 35 x 7 class rope Rope diameter: 19 mm (.75 in) Rope length: 152 m (500 ft) Maximum rope stowage: 256 m (841 ft)

Chassis

Triple box section, four-axle carrier, fabricated from high strength, low alloy steel with towing and tie-down lugs.

Outrigger system

Four hydraulic telescoping, single stage, double box beam outriggers with inverted jack and integral holding valves. Quick release type steel outrigger floats 610 mm (24 in) diameter. Three position setting with fully extended, intermediate (50%) extended and fully retracted capacities. 5th front jack with self-storing pad and automatic first-retract. Includes Outrigger Monitoring System. Maximum outrigger pad load: 90,890 lb

Outrigger controls

Located in the superstructure cab and both sides of chassis. Level indicator at each control station.

Engine

Cummins QSM 11 six-cylinder, turbo-charged and after-cooled diesel engine. 10.8 L (660 in3 ), 300 kW (402 bhp) at 1800 rpm. Maximum torque 1898 Nm (1400 lb-ft) at 1400 rpm. Tier III "Off-Highway" EPA, CARB and EU Stage IIIA compliant. Equipped with engine compression brake, audio-visual engine distress system and ether cold start aid. Fuel Requirement: Maximum of 5000 ppm sulfur content.

Fuel tank capacity

379 L (100 gal).

Transmission

Roadranger 11 speeds forward, 3 reverse, manual.

Drive

Drive 8 x 4 x 4.

Steering

Front axles, single circuit, mechanical steering with hydraulic assist.

Axles

Front: (2) beam-type steering axles, 2,1 m (83.3 in) track. Rear: (2) single reduction drive axles, 1,9 m (75.1 in) track. Inter-axle differential lock.

Brakes

S-cam, dual system operating on all wheels. Spring applied air released parking brake acting on rear axles. Air dryer.

Suspension

Front: Walking beam with air bags and shock absorbers. Rear: Walking beam with air bags and shock absorbers.

Tires

Front: 445/65R 22.5, tubeless, mounted on aluminum disc wheels. Rear: 315/80R 22.5, tubeless, mounted on aluminum disc wheels, steel inner

Lights

Full lighting package including turn indicators, head, tail, brake, and hazard warning lights.

Cab

One man design, all steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe fabric covered, fully adjustable air ride seat. Complete driving controls and engine instrumentation including tilt telescope steering wheel, tachometer, speedometer, voltmeter, water temp., oil pressure, fuel level, air pressure gauge with A/V warning and engine high temp./low oil pressure A/V warning. Other standard items include hot water heater/defroster, electric windshield wash/wipe, fire extinguisher, seat belt, air conditioning, air horn and door lock.

Electrical system

Three (3) 12V batteries. 12V lighting/starting. Battery disconnect standard equipment.

Maximum speed

104 km/h (65 mph)

Gradeability (theoretical)

70%

Miscellaneous standard equipment

Aluminum fenders with rear storage compartments; dual rear view mirrors; electronic back-up alarm; pump disconnect; tire inflation kit; air cleaner restriction indicator; headache ball stowage; chrome package which includes aluminum wheels, hoist access platform, LMI event recorder and CraneSTAR asset management system.

*Optional equipment

Auxiliary Lighting and Convenience Package - includes amber strobe for superstructure and carrier cabs, dual boom base mounted floodlights, and LMI light bar (in cab) Trailing Boom Package - includes trailer air and electrical disconnects, no spin differential and trailing boom kit (less dolly) Wind speed indicator Hook blocks Rear pintle hook Cross axle differential locks Winter front radiator cover Aluminum outrigger pads Tow cable LMI calibration for on rubber
