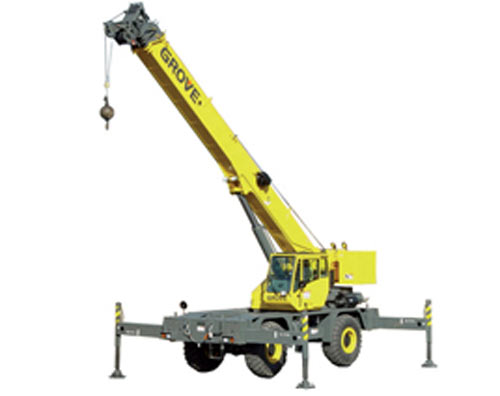

Rough Terrain Mobile Crane | RT540E

Back to Rough Terrain

HOME

PRODUCTS

RT540E

KEY SPECIFICATIONS

TYPE	VALUE
Capacity	35 t
Main Boom Length	9,7 m - 31 m
Max Tip Height	46.9 m
Vehicle Gross Weight	28775 kg

TYPE

VALUE

Capacity

35 t

Main Boom Length

9,7 m - 31 m

Max Tip Height

46.9 m

Vehicle Gross Weight

28775 kg

	FEATURE	DESCRIPTION
	Boom	9,8m - 31,0m. Four-section, synchronized full power boom. Maximum tip height: 33,6m.
	*Telescopic Swingaway extension	7,9m - 13,7m offsettable telescopic swingaway extension. Offsets at 0°, 15° and 30°. Stows alongside base boom section. Maximum tip height: 47 m.
	Boom elevation	One double acting hydraulic cylinder with integral holding valve provides elevation from -3° to +78°
	Load moment and anti-two block system	Standard "Graphic Display" load moment and anti-two block system with audiovisual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition. The standard Work Area Definition System allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions.
	Cab	Full-vision, all-steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat incorporates armrest-mounted electric dual-axis controllers. Dash panel incorporates gauges for all engine functions. Other standard features include: hot water heater, cab circulating air fan, air conditioning, sliding side and rear windows, sliding skylight with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher and seat belt.
	Slewing	Single speed, planetary swing drive with foot applied multi-disc wet brake. Spring applied, hydraulically released swing brake. Single position mechanical house lock, operated from cab. Maximum speed: 2,0 RPM.
	Counterweight	4305 kg pinned to superstructure
	Hydraulic system	Two main pumps ([1] piston and [1] gear) with a combined capacity of 316,5 LPM. Maximum operating pressure: 275,7 bar. Three section pressure compensated valve bank. Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with micron filtration rating of 5/12/16. 396 L hyd. reservoir. System pressure test ports.
	Hoist	Planetary reduction with automatic spring applied multi-disc wet brake. Electronic hoist drum rotation indicators, and hoist drum cable followers. Maximum Single Line Pull: • 1st layer: 5 280 kg. • 3rd layer: 4 323 kg. • 5th layer: 3 656 kg. Maximum Permissible Line Pull: 5 280 kg. with 34x37 class rope. Maximum Single Line Speed: 136 m/min. Rope Construction: 34w x K7, rotation Resistant. Rope Diameter: 16mm. Rope Length: Main Hoist: 137 m - Auxiliary Hoist: 137 m. Maximum Rope Stowage: 181 m
	CraneSTAR	Crane asset management system.
	Carrier frame	Box section frame fabricated from high-strength, lowalloy steel. Front/rear towing and tie down lugs.
	Outriggers	Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully extended. All steel fabricated, quick release type outrigger floats, 362 mm square. Maximum outrigger pad load: 26 300kg. Controls and crane level indicator located in cab.
	Engine	Engine (Tier III): Cummins QSB 6.7 L diesel, six cylinders, 119 kW at 2500 rpm. Maximum torque: 731 Nm at 1500 rpm. Fuel tank capacity: 219 l. Engine (Tier IV): Cummins QSB 6.7 L diesel, six cylinders, turbocharged with Cummins Diesel Oxidation Catalyst filter/muffler. Meets emissions per U.S.E.P.A. Tier IV and E.U. Stage III B. 122 kW at 2300 rpm. Maximum torque: 731 Nm at 1500 rpm. Fuel requirement: Maximum of 15 ppm sulphur content (Ultra Low Diesel Fuel). Note: Tier IV engine Required in North American, Canada, and European Union countries.
	Transmission	Range-shift 6 speed (3 speeds x 2 range, both forward & reverse). Front axle disconnect for 4 x 2 travel.
	Drive/Steer	4 x 4. Fully independent power steering: Front: Full hydraulic steering wheel controlled. Rear: Full hydraulic switch controlled. Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer indicator. Turning radius: 7,62 m.
	Axles	Front: Drive/steer with differential and planetary reduction hubs rigid mounted to frame. Rear: Drive/steer with differential and planetary reduction hubs pivot mounted to frame.
	Tyres	Std. 20,5 x 25 - 24 bias ply. Option: 16,0 x 25-28 bias ply.
	Lights	Full lighting including turn indicators, head, tail, brake and hazard warning lights.
	Maximum Speed	40 km/h at 2500 r.p.m.
	Gradeability (theoretical)	119% (Based on 28365 kg GVW) 20.5 x 25 tires, 31 m main boom, 13,7 m telescopic swingaway, 4305 kg counterweight, 35 t hookblock and 6,8 t headache ball.
	Brakes	Full hydraulic split circuit operating on all wheels. Spring-applied, hydraulically released parking brake mounted on front axle.
	Electrical system	Two 12 V - maintenance free batteries. 12 V starting and lighting. Battery disconnect. CanBus Diagnostic system.
	* Optional equipment	Auxiliary Hoist Package: includes model HP15C-17G auxiliary hoist with electronic hoist drum rotation indicator, hoist drum cable follower, 137 m of 16 mm 35 x 7 class wire rope and auxiliary sheave boom nose • Auxiliary Light and Convenience Package: includes cab mounted amber flashing light, hoist mounted work lights, and dual base boom mounted floodlights, LMI light bar (in cab), rubber mat for stowage trough • CE Mark Conformance • 360° NYC style mechanical swing lock • Rear Pintle hook • Cab-controlled cross axle differential locks (front and rear)

FEATURE

DESCRIPTION

Boom

9,8m - 31,0m. Four-section, synchronized full power boom. Maximum tip height: 33,6m.

*Telescopic Swingaway extension

7,9m - 13,7m offsettable telescopic swingaway extension. Offsets at 0°, 15° and 30°. Stows alongside base boom section. Maximum tip height: 47 m.

Boom elevation

One double acting hydraulic cylinder with integral holding valve provides elevation from -3° to +78°

Load moment and anti-two block system

Standard "Graphic Display" load moment and anti-two block system with audiovisual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition. The standard Work Area Definition System allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions.

Cab

Full-vision, all-steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat incorporates armrest-mounted electric dual-axis controllers. Dash panel incorporates gauges for all engine functions. Other standard features include: hot water heater, cab circulating air fan, air conditioning, sliding side and rear windows, sliding skylight with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher and seat belt.

Slewing

Single speed, planetary swing drive with foot applied multi-disc wet brake. Spring applied, hydraulically released swing brake. Single position mechanical house lock, operated from cab. Maximum speed: 2,0 RPM.

Counterweight

4305 kg pinned to superstructure

Hydraulic system

Two main pumps ([1] piston and [1] gear) with a combined capacity of 316,5 LPM. Maximum operating pressure: 275,7 bar. Three section pressure compensated valve bank. Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with micron filtration rating of 5/12/16. 396 L hyd. reservoir. System pressure test ports.

Hoist

Planetary reduction with automatic spring applied multi-disc wet brake. Electronic hoist drum rotation indicators, and hoist drum cable followers. Maximum Single Line Pull:
• 1st layer: 5 280 kg.
• 3rd layer: 4 323 kg.
• 5th layer: 3 656 kg. Maximum Permissible Line Pull: 5 280 kg. with 34x37 class rope. Maximum Single Line Speed: 136 m/min. Rope Construction: 34w x K7, rotation Resistant. Rope Diameter: 16mm. Rope Length: Main Hoist: 137 m - Auxiliary Hoist: 137 m. Maximum Rope Stowage: 181 m

CraneSTAR

Crane asset management system.

Carrier frame

Box section frame fabricated from high-strength, lowalloy steel. Front/rear towing and tie down lugs.

Outriggers

Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully extended. All steel fabricated, quick release type outrigger floats, 362 mm square. Maximum outrigger pad load: 26 300kg. Controls and crane level indicator located in cab.

Engine

Engine (Tier III): Cummins QSB 6.7 L diesel, six cylinders, 119 kW at 2500 rpm. Maximum torque: 731 Nm at 1500 rpm. Fuel tank capacity: 219 l. Engine (Tier IV): Cummins QSB 6.7 L diesel, six cylinders, turbocharged with Cummins Diesel Oxidation Catalyst filter/muffler. Meets emissions per U.S.E.P.A. Tier IV and E.U. Stage III B. 122 kW at 2300 rpm. Maximum torque: 731 Nm at 1500 rpm. Fuel requirement: Maximum of 15 ppm sulphur content (Ultra Low Diesel Fuel). Note: Tier IV engine Required in North American, Canada, and European Union countries.

Transmission

Range-shift 6 speed (3 speeds x 2 range, both forward & reverse). Front axle disconnect for 4 x 2 travel.

Drive/Steer

4 x 4. Fully independent power steering: Front: Full hydraulic steering wheel controlled. Rear: Full hydraulic switch controlled. Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer indicator. Turning radius: 7,62 m.

Axles

Front: Drive/steer with differential and planetary reduction hubs rigid mounted to frame. Rear: Drive/steer with differential and planetary reduction hubs pivot mounted to frame.

Tyres

Std. 20,5 x 25 - 24 bias ply. Option: 16,0 x 25-28 bias ply.

Lights

Full lighting including turn indicators, head, tail, brake and hazard warning lights.

Maximum Speed

40 km/h at 2500 r.p.m.

Gradeability (theoretical)

119% (Based on 28365 kg GVW) 20.5 x 25 tires, 31 m main boom, 13,7 m telescopic swingaway, 4305 kg counterweight, 35 t hookblock and 6,8 t headache ball.

Brakes

Full hydraulic split circuit operating on all wheels. Spring-applied, hydraulically released parking brake mounted on front axle.

Electrical system

Two 12 V - maintenance free batteries. 12 V starting and lighting. Battery disconnect. CanBus Diagnostic system.

* Optional equipment

Auxiliary Hoist Package: includes model HP15C-17G auxiliary hoist with electronic hoist drum rotation indicator, hoist drum cable follower, 137 m of 16 mm 35 x 7 class wire rope and auxiliary sheave boom nose
• Auxiliary Light and Convenience Package: includes cab mounted amber flashing light, hoist mounted work lights, and dual base boom mounted floodlights, LMI light bar (in cab), rubber mat for stowage trough
• CE Mark Conformance
• 360° NYC style mechanical swing lock
• Rear Pintle hook
• Cab-controlled cross axle differential locks (front and rear)
