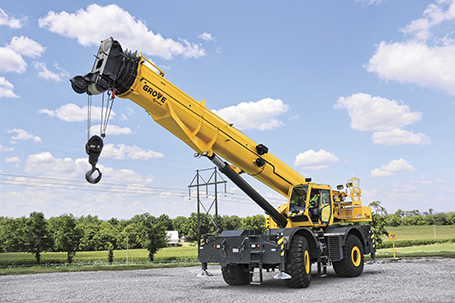

Rough Terrain Mobile Crane | GRT8100
HOME
PRODUCTS
GRT8100
KEY SPECIFICATIONS
| TYPE | VALUE | |
|---|---|---|
| Capacity | 90 t |  |
| Main Boom Length | 12 m - 47 m |  |
| Max Tip Height | 73 m |  |
| Vehicle Gross Weight | 53506.2 kg | |
TECHNICAL
| FEATURE | DESCRIPTION | |
|---|---|---|
 | Boom | 12 m - 47 m five-section full-power boom, sequenced synchronized, full-power boom with three operator selectable modes of extension and retraction. Any mode can be enabled or disabled to offer all modes or limited mode depending on user or application usage. Maximum tip height: 50 m |
| *Optional manual bi-fold swingaway extension | 10 m - 17 m bi-fold lattice swingaway extension. Offsettable at 0°, 20°, and 40°. Stows alongside base boom section. Electric motor assist for stowing and pin alignment.Maximum tip height: 67 m | |
| *Optional hydraulic bi-fold swingaway extension | 10 m - 17 m bi-fold lattice swingaway extension. Hydraulic luffing offset from 0° to 40°. Stows alongside base boom section. Electric motor assist for stowing and pin alignment. Maximum tip height: 67 m | |
| *Optional lattice extension insert | (1) x 6 m lattice extension insert. Installs between boom nose and either optional extension. Maximum tip height: 72,9 m | |
 | Boom nose | Five Nylatron sheaves mounted on heavy-duty tapered roller bearings with removable pin-type guards. Quick-reeve type boom nose. Removable single sheave auxiliary boom nose with removable pin type rope guard. |
| Crane Control System (CCS) | "Graphic Display" RCL load moment and anti-two block system with audio-visual warning and control lever lockout. This system provides electronic display of boom angle, boom length, load radius, boom tip height, maximum permissible load, actual load and warning of impending two-block condition. The work area definition system allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job site obstructions. | |
 | Counterweight | Standard 9979 kg. Hydraulically installed and removed. Controls located on superstructure. *Optional 2268 kg pinned slab increases counterweight to 12 247 kg hydraulically installed and removed with standard counterweight. |
 | Cab | Operator-controlled 20° hydraulic tilt, full vision, all steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat with headrest, incorporates armrest-mounted electronic programmable single-axis or dual axis controllers and a jog dial for easier data input. Tilt/telescoping steering wheel with various controls incorporated into the steering column. Other standard features include hot water heater, cab circulating air fan, sliding side and opening rear window, sliding skylight with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher, seat belt, air conditioning and dual cab mounted work lights. |
 | Swing | Variable speed, planetary swing drive with foot applied multi-disc proportional wet brake. Spring applied, hydraulically released swing brake. Two position mechanical swing lock pin, operated from cab. Maximum swing speed: 2 rpm |
 | Hoist (main and auxiliary hoist) | Planetary reduction driven by axial piston motor. Grooved drum with automatic spring applied multi-disk wet brake. Electronic hoist drum rotation indicator and hoist drum cable follower. Third wrap indictor with hoist function cut-out standard. Maximum hoist single line pull: • 1st layer: 10 645 kg • 3rd layer: 9058 kg • 6th layer: 7403 kg Maximum permissible single line pull: 7620 kg with 35 x 7 class rope Maximum hoist single line speed (no load): 148 m/min Rope construction: 35 x 7 rotation - resistant Rope diameter: 19 mm Rope length: Main hoist: 214 m - Aux. hoist: 214 m Maximum usable rope: 241 m 6 layers |
| CraneSTAR | Crane asset management system. | |
 | Chassis | Parallel box section fabricated from high-strength, low-alloy steel with integral outrigger boxes, front and rear lift, tie-down, and towing lugs. |
 | Outriggers | Four hydraulic telescoping single stage double box beam outriggers with inverted jack cylinders and integral jack holding valves. Three position settings, 0%, 50%, and fully extended (100%). Aluminum fabricated outrigger floats 609,6 mm diameter. Maximum outrigger pad load: 57 290 kg.Controls and crane leveling indicator located in cab. Extension and retraction are through the CCS system. |
 | Hydraulic system | Two main pumps [2] variable displacement piston and [1] gear with a combined output capacity of 496 L/min. Maximum operating pressure: 276 bar Return line in-tank filter with full flow by-pass protection and service indicator. Replaceable cartridge with 4 micron filtration rating per ISO cleanliness level of 17/15/12. Carrier mounted oil cooler with thermostatically controlled hydraulic motor driven fan / air to oil. System pressure test ports |
 | Engine | Tier 4F / Cummins QSB6,7L diesel six cylinder, turbo-charged with Cummins Compact Catalyst (CCC) and selective catalytic reduction (SCR) combo muffler, using diesel exhaust fluid (DEF) injection. Meets emissions per U.S. EPA Tier 4F and E.U. Stage IV. 205 kW at 2500 rpm, Maximum torque: 990 Nm at 1500 rpm. Fuel requirements: Maximum of 15 ppm ultra-low sulfur diesel fuel + diesel exhaust fluid (DEF). NOTE: Required for sale in North America and European Union. Tier 3 / Cummins QSB6.7L diesel six cylinder, turbo-charged with 205 kW at 2500 rpm, Maximum torque: 990 Nm at 1500 rpm. Fuel requirements: Maximum of 5000 ppm. Sulfur diesel fuel. NOTE: Required for sale outside of North America and European Union. Fuel tank capacity: 312 L |
 | Transmission | Rangeshift with six forward and six reverse speeds. (Three speeds high and three speeds low). Front axle disconnect for 4 x 2 drive. |
 | Axles | Front: Drive / steer with differential and planetary reduction hubs rigid mounted to frame. Rear: Drive / steer with differential and planetary reduction hubs pivot mounted to frame. Automatic full hydraulic lockouts on rear axle permits. 254 mm of oscillation only with boom centered over the front. |
 | Brakes | Full hydraulic split (dual) circuit dry disc operating on all wheels with dual calipers. Parking brake is spring applied / hydraulically released on the front axle input shaft. |
 | Steering | Fully independent power steering. Front: Fully hydraulic steering wheel controlled. Rear: Fully hydraulic via separate momentary switch provides infinite variations 4 steering modes, front only, rear only, coordinated and crab. Rear steer not aligned indicator. Outside 4ws coordinated steer radius: 7,3 m Inside 4ws coordinated steer radius: 4,9 m |
 | Tires | 29,5 x 25 - 34 bias ply rating |
 | Electrical system | Two 12 V maintenance-free batteries with disconnect. 24 V system / 24 V lighting |
 | Lighting | Full lighting including turn indicators, LED head, tail, brake and hazard warning, and two halogen work lights mounted on cab front. |
 | Maximum Drive Speed | 32 km/h with 9979 kg counterweight. 24 km/h with 12 247 kg counterweight |
 | Gradeability (theoretical) | 70% to drive train stall based on 55 763 kg GVW with 29,5 x 25 tires, standard. counterweight, auxiliary hoist and manual bi-fold extension. |
| *Optional equipment | Auxiliary Hoist Package: Includes MTW 19-241 hoist with electronic hoist drum rotation indicator, hoist drum cable follower, third wrap indicator with hoist function cut-out, 214 m of 19 mm of 35 x 7 class rotation resistant wire rope. • Auxiliary Lighting and Convenience Package: Includes superstructure mounted amber flashing light, dual base boom mounted floodlights, in-cab R.C.L. light bar and rubber mat for storage trough. • 10 m - 17 m manual bi-fold swingway extension • 10 m - 17 m hydraulic luffing extension • 3 m heavy-duty extension with two sheaves • 2268 kg additional counterweight slab • 360° NYC style mechanical swing lock • Rear pintle hitch • Cab-controlled cross axle differential locks (front and rear) • Wireless wind speed indicator • Vertical R.C.L. light tower •-29C / -20F cold weather package •-40C / -40F arctic weather package • Electric drive line retarder • Emergency stop buttons on each side of carrier • Second beacon light • Refinery package (certified spark arrestor + engine air shutdown) (T3 engine only) • C.E. certificate package • Russian certificate package • Synthetic rope for main and / or auxiliary hoist • Outrigger monitoring system with outrigger beam position display on R.C.L. screen. |
